Fleet
-
* The JLCSD550 Cutter Suction Dredger of steel construction, the non-self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers.
* Equipped for working in hot, tropical and isolated locations.
* Fully equipped for dredging trenches, navigation channels and harbors.
* Suitable for deep water dredging operations.
* Anchor booms for quick side anchor handling.
Description
Required Specification
Remarks
Manufacturer
JULONG, China
ISO9001
Certified EnterpriseYear of construction
2020
Brand
JULONG
Registered Brand
Model
JLCSD550
Gross tonnage
182.7
Length overall
49 m
Length b.p.p.
40 m
Breadth
7.8 m
Depth
2 m
Draft
1.3 m
Max. Dredging Depth
14 m
Min. Dredging Depth
1.8 m
Max. Discharge Distance
2000 m
Discharge Pipe Dia.
550 mm
Anchoring system
Spud carriage
Total Installation Power
1640 kw
Cummins
Cutter Shaft Power
170 kw
Discharge pump output
894.5 kw
-
* The JLCSD550 Cutter Suction Dredger of steel construction, the non-self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers.
* Equipped for working in hot, tropical and isolated locations.
* Fully equipped for dredging trenches, navigation channels and harbors.
* Suitable for deep water dredging operations.
* Anchor booms for quick side anchor handling.
Description
Required Specification
Remarks
Manufacturer
JULONG, China
ISO9001
Certified EnterpriseYear of construction
2020
Brand
JULONG
Registered Brand
Model
JLCSD550
Gross tonnage
189.7 t
Length overall
54 m
Length b.p.p.
40 m
Breadth
7.8 m
Depth
2 m
Draft
1.3 m
Max. Dredging Depth
18 m
Min. Dredging Depth
1.8 m
Max. Discharge Distance
2000 m
Discharge Pipe Dia.
550 mm
Anchoring system
Spud carriage
Total Installation Power
1640 kw
Cummins
Cutter Shaft Power
170 kw
Discharge pump output
894.5 kw
-

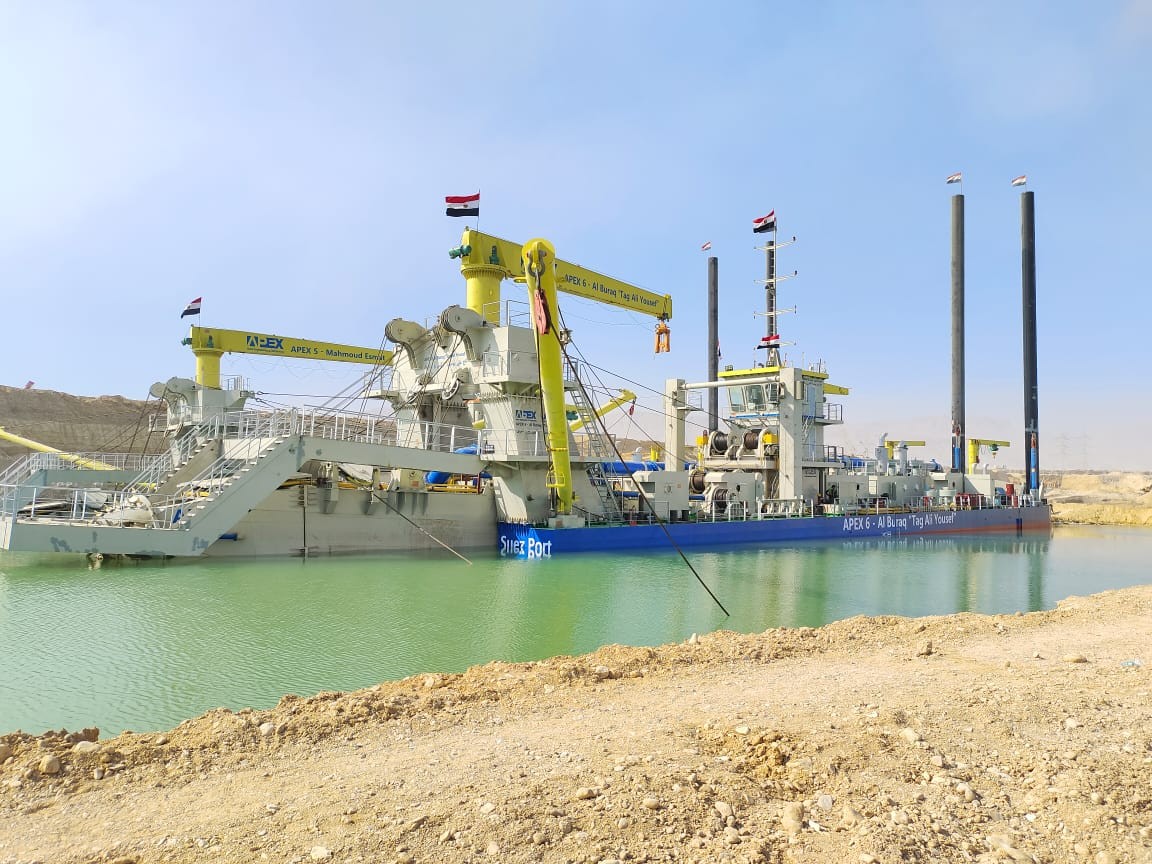

* Apex 5,6 Cutter Suction Dredger of steel construction, the non-self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers.
* Equipped for working in hot, tropical and isolated locations.
* Fully equipped for dredging trenches, navigation channels and harbors.
* Suitable for deep water dredging operations.
* Anchor booms for quick side anchor handling.
Description
Required Specification
Remarks
Manufacturer
JULONG, China
ISO9001
Certified EnterpriseYear of construction
2023
Brand
GOLDEN JULONG
Registered Brand
Model
JLCSD8000
Gross tonnage
812.5 ton
Length overall
72 m
Length
55 m
Breadth
11.8 m
Depth
3.3 m
Draft
2.5 m
Max. Dredging Depth
25 m
Min. Dredging Depth
4 m
Max. Discharge Distance
4,000 m
Discharge Pipe Dia.
750 mm
Anchoring system
Spud carriage
Total Installation Power
6,252 kw
Cutting Power
1,232 kw
Discharge pump output
4,300 kw
-
* Apex 5,6 Cutter Suction Dredger of steel construction, the non-self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers.
* Equipped for working in hot, tropical and isolated locations.
* Fully equipped for dredging trenches, navigation channels and harbors.
* Suitable for deep water dredging operations.
* Anchor booms for quick side anchor handling.
Description
Required Specification
Remarks
Manufacturer
JULONG, China
ISO9001
Certified EnterpriseYear of construction
2023
Brand
GOLDEN JULONG
Registered Brand
Model
JLCSD8000
Gross tonnage
812.5 ton
Length overall
72 m
Length
55 m
Breadth
11.8 m
Depth
3.3 m
Draft
2.5 m
Max. Dredging Depth
25 m
Min. Dredging Depth
4 m
Max. Discharge Distance
4,000 m
Discharge Pipe Dia.
750 mm
Anchoring system
Spud carriage
Total Installation Power
6,252 kw
Cutting Power
1,232 kw
Discharge pump output
4,300 kw
-

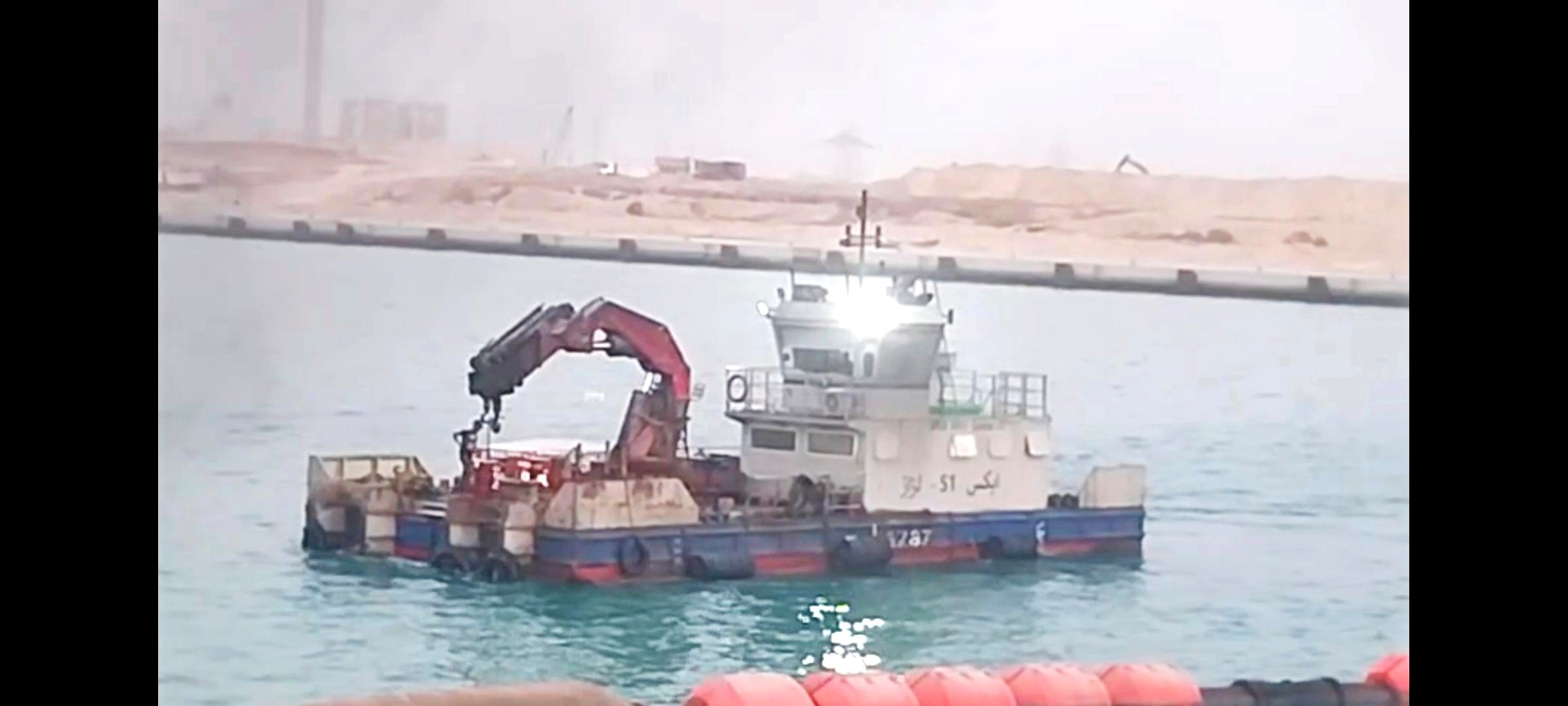

- The Multicat “Apex S1 marine vessel is Twin propulsion workboat type.
- With a beam of 9 meters improves the stability making a very sturdy work platform for all tasks.
- The vessel is fitted with towing bollards at the stern along with a quick release towing hook.
- the vessel has a deck carrying capacity of 70 ton.
Description
Required Specification
Remarks
Manufacturer
JULONG, China
Year of construction
2023
Brand
GOLDEN JULONG
Model
JLWB1600
Gross tonnage
138.3 ton
Length overall
20 m
Length
9 m
Breadth
2.6 m
Depth
1.5 m
Draft
2.5 m
Boat speed
7-8 knot
Bollard pull
15 t
Fuel capacity
110,000 Ltrs
Anchor Crane & Hook
1no Aft – 26ton@5m-10ton@12m
Total Installation Power
1,250 kw
Accommodation
4 person - 1 kitchen- and 2 toilets
-

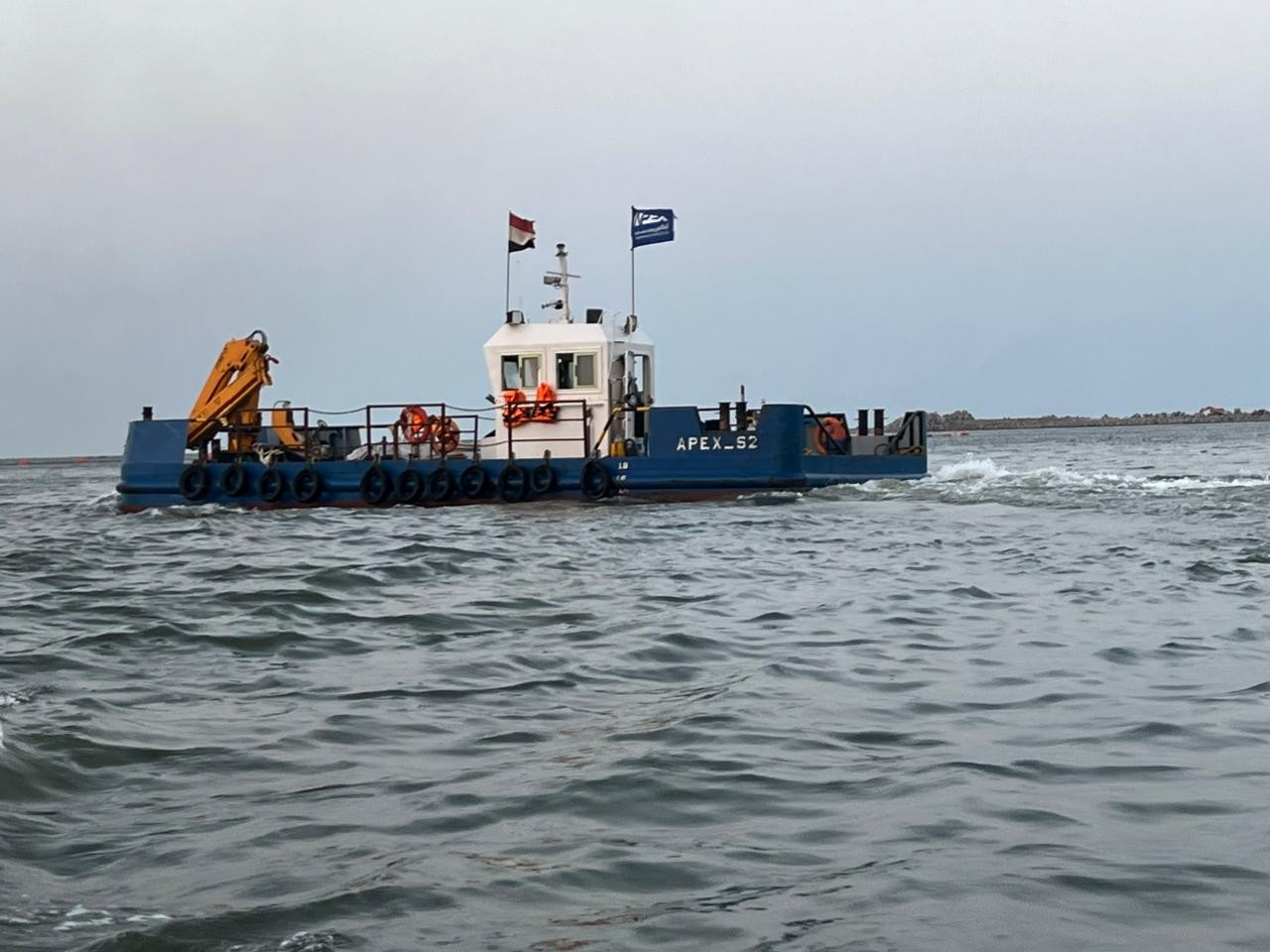

- The Multicat “Apex S2 ” marine vessel is Twin propulsion workboat type.
Description
Required Specification
Remarks
Manufacturer
EGYPT
Year of construction
2025
Gross tonnage
138.3 ton
Length overall
15 m
Breadth
5.80 m
Depth
2.00 m
Draft
1.00 m
Boat speed
7-8 knot
Bollard pull
9 t
Fuel capacity
25.74 CU.M
Anchor Crane & Hook
1no Aft – 6 ton
Total Installation Power
800 HP
Accommodation
4 person - 1 kitchen- and 2 toilets
-
- The Multicat “Apex S3 ” marine vessel is Twin propulsion workboat type.
- With a beam of 9 meters improves the stability making a very sturdy work platform for all tasks.
- The vessel is fitted with towing bollards at the stern along with a quick release towing hook.
- the vessel has a deck carrying capacity of 70 ton.
Description
Required Specification
Remarks
Manufacturer
EGYPT
Year of construction
2023
Model
JLWB1600
Gross tonnage
138.3 ton
Length overall
20 m
Length
9 m
Breadth
2.6 m
Depth
1.5 m
Draft
2.5 m
Boat speed
7-8 knot
Bollard pull
15 t
Fuel capacity
110,000 Ltrs
Anchor Crane & Hook
1no Aft – 26ton@5m-10ton@12m
Total Installation Power
1,250 kw
Accommodation
4 person - 1 kitchen- and 2 toilets
-
- The Multicat “Apex S4 ” marine vessel is Twin propulsion workboat type.
Description
Required Specification
Remarks
Manufacturer
EGYPT
Year of construction
2025
Gross tonnage
40.00 ton
Length overall
15 m
Breadth
5.80 m
Depth
2.00 m
Draft
1.00 m
Boat speed
7-8 knot
Bollard pull
9 t
Fuel capacity
25.74 CU.M
Anchor Crane & Hook
1no Aft – 6 ton
Total Installation Power
800 HP
-

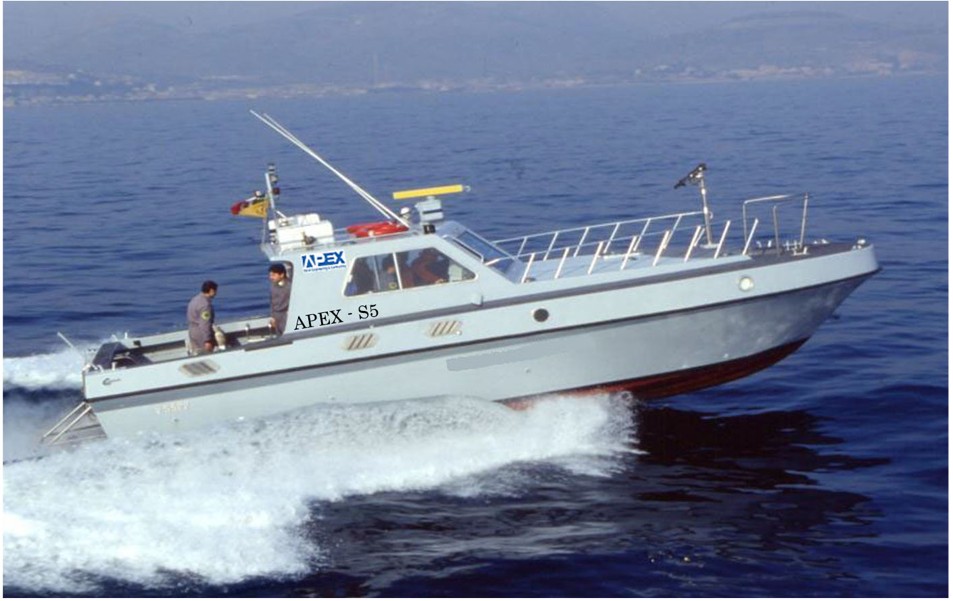

TECHNICAL DATA SHEET
Hull material Fiberglass Dimensioni Overall length: 12.05 m
Dimensioni
Maximum width: 3.80 m
Displacement: 7.80 tons.Maximum speed 25 Kt Speed autonomy
cruise228 nautical miles - 15 hours Motorisation Nr. 2 AIFO 8361 SRM diesel engines of 270 HP
connected to two Castaldi 06 waterjetsCrew No. 5 soldiers Notes Forane units capable of operating even in conditions
unfavorable marine weather forecasts, with excellent
seaworthiness and great operational capabilities for
patrolling, transfer and rescue
were
built by
numerous other
shipyards.
Designed by the
Crestitalia shipyard, they were built during the period
1979/1981, in 82 lookouts. They were the first police
Notes
units in Italy to adopt waterjet propulsion, which
guarantees excellent maneuverability and allows
navigation even in very shallow waters. The V.5500
class lookouts have undergone a series of upgrades
over the years, which have affected the jets and the
electronic component.
